Operating Guide for the Compression Boots
print icon

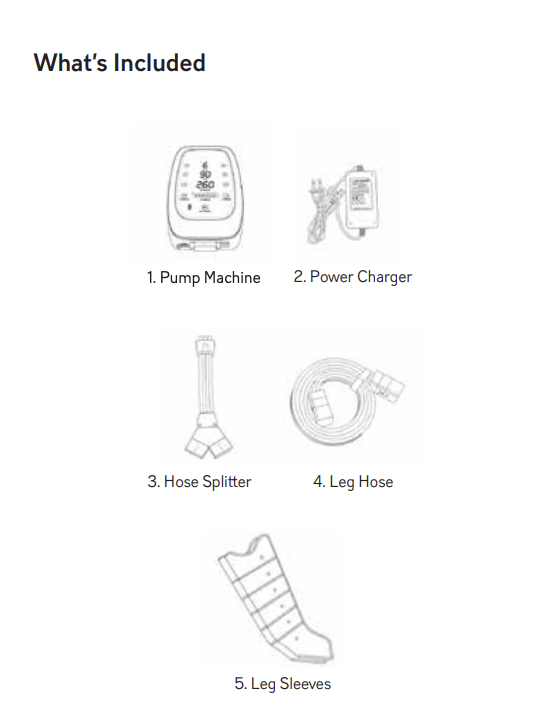

Gather Your Equipment

Ensure you have all of the components below:


Step 1: Get Comfortable

  • Find a comfy spot to sit or lie down
  • Use a recliner or zero gravity chair for extra comfort



Step 2: Setup the Boot

  • Plug the Hose Splitter into the Pump Machine
  • Connect Leg Hoses to Leg Sleeves
  • Connect Hose Splitter to Leg Hoses

⚠️ Note: Match arrows on connectors. Push all 6 leg sleeve connectors in securely.

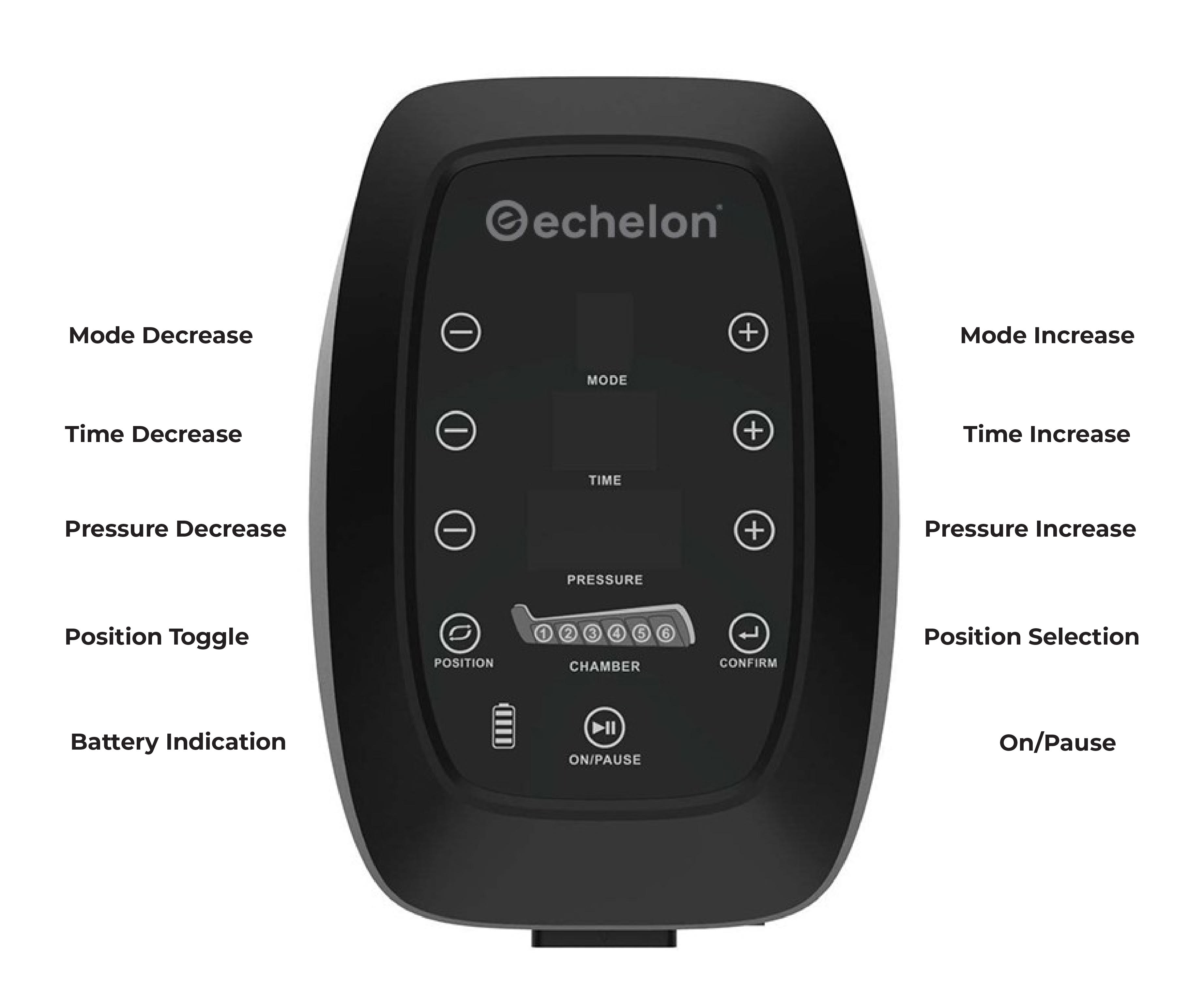

Step 3: Choose Your Settings

  • Set Pressure, Session Duration, and Mode
  • Explore 6 Modes in the manual



Pro Tip: Try 20-30 mins & 100 mmGh for your first time.

Step 4: Put On the Boots

  • Sit or lie down
  • Slide legs into sleeves
  • Ensure heels are at the bottom and boots fit snugly around your thighs



Pro-Tip: Position your legs in a slightly elevated manner for added circulatory benefits.

Step 5: Start and Relax

  • Press the On button to start
  • Boots inflate and deflate based on Mode
  • Enjoy!



Cycle Done:

When it beeps, turn off machine, unzip sleeves, gently disconnect tubes, and roll sleeves from feet up to release air.



Your legs' new best friend has arrived-enjoy the journey!
