How to disassemble and reassemble my pedal.
print icon
Kerry Dyer
Jul 22, 2025
2431 views

Please follow the steps below to disassemble and reassemble your replacement pedal.

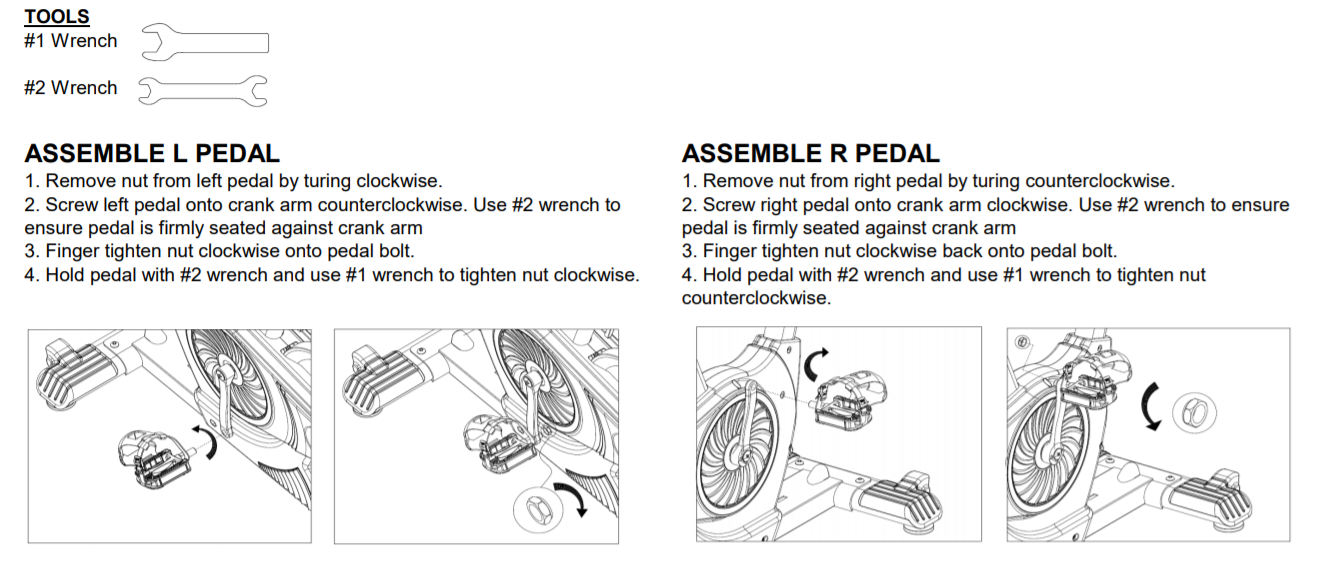

Pedals 1.png

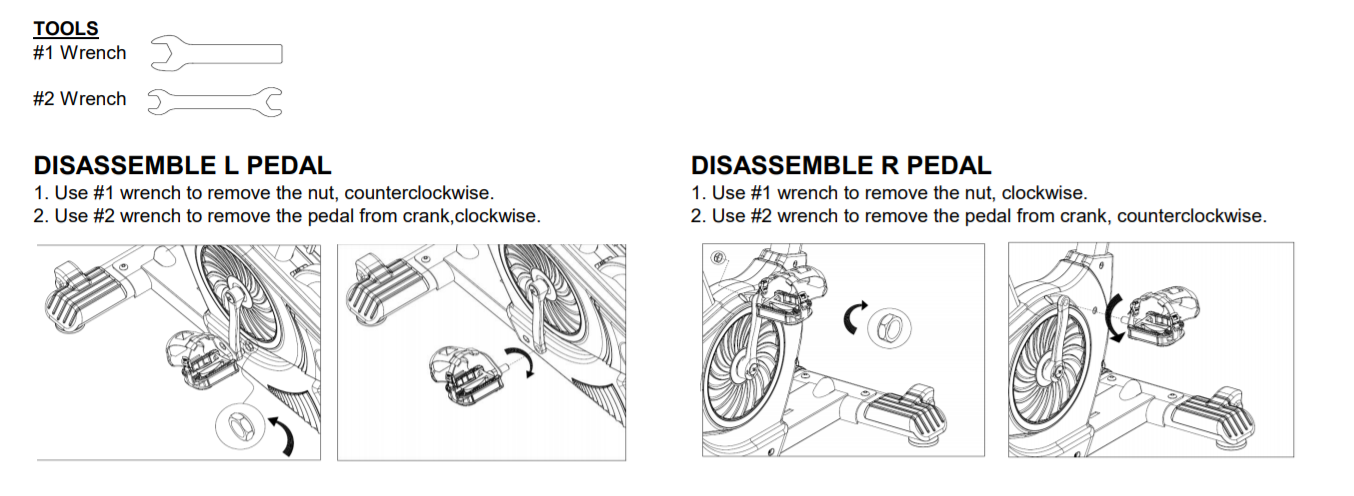

Pedals 2.png
